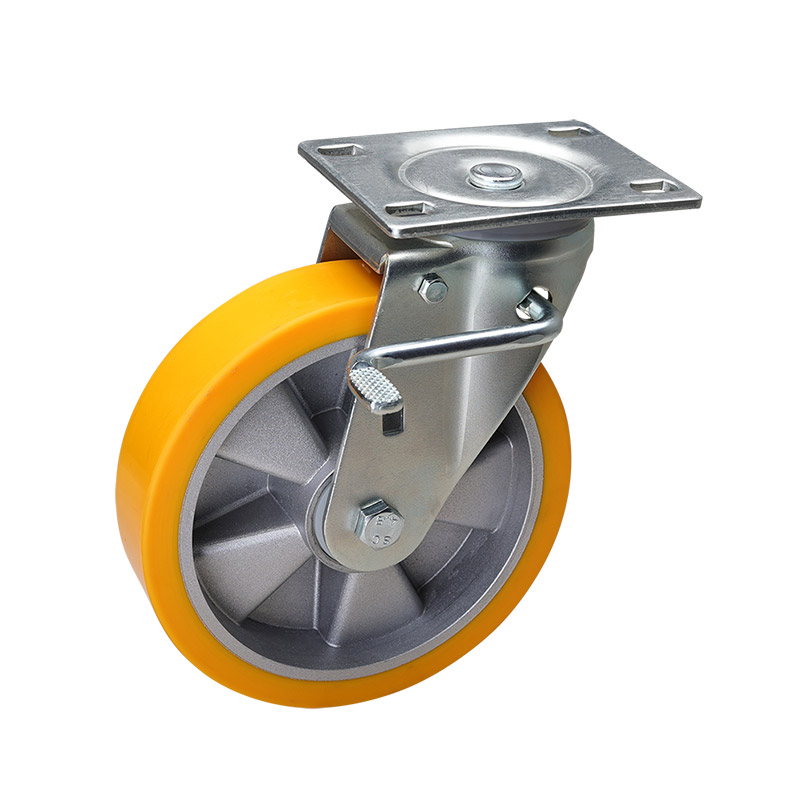

    EDL Heavy 8" 500kg Plate Side Dual Brake TPU Caster 77128K-778-86A
    • Product Category:77 Series(400-450kg)
    • Item NO.:77128K-778-86A
    • Wheel Diameter:8"(200mm)
    • Mounting Type:Plate_Brake
    • Tread Material:TPU
    • Dynamic Load:500kg

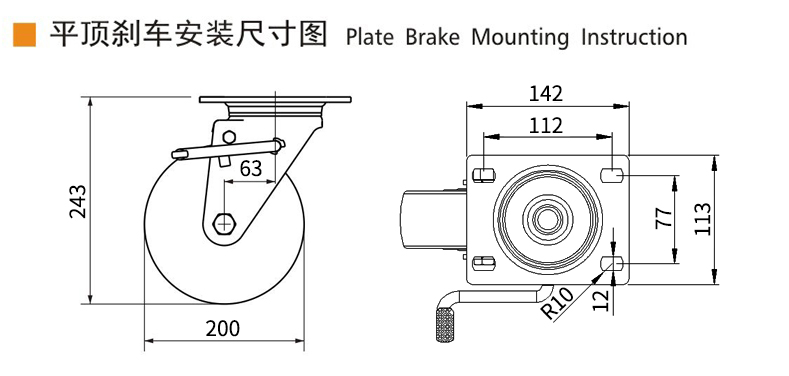

    • Mounting Height :243mm
    • Frame Material:Hot-Rolled Plate
    • Plate Thickness:5mm
    • Brack Thickness:4mm
    • Surface Treatment:Zinc Coating
    • Bracket Width:61mm
    • Wheel width:50mm

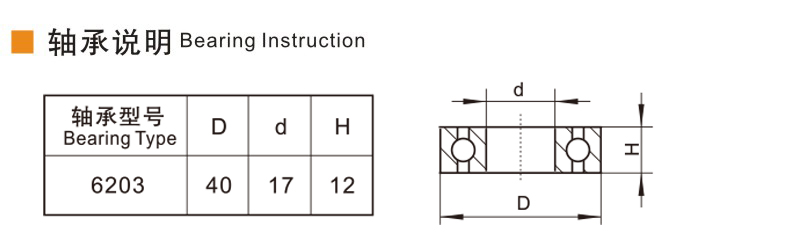

    • Bearing:Double Ball Bearing
    • Tread Color: Orange
    • Core Material:Aluminum
    • Applicable Temperature:-20℃~80℃
    • Tread Hardness:95A
    Commodity Details
