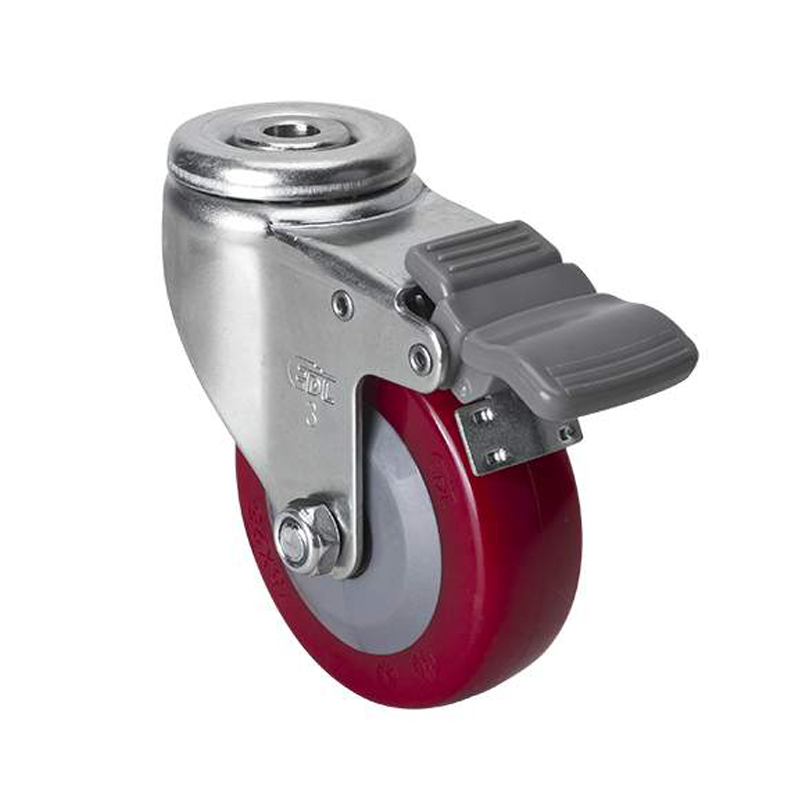

    EDL Light 3'' 70kg Bolt Hole Plastic Dual Brake TPU caster 36183H-363-84
    • Product Category:36 Series(60-80kg)
    • Item NO.:36183H-363-84
    • Wheel Diameter:3"(75mm)

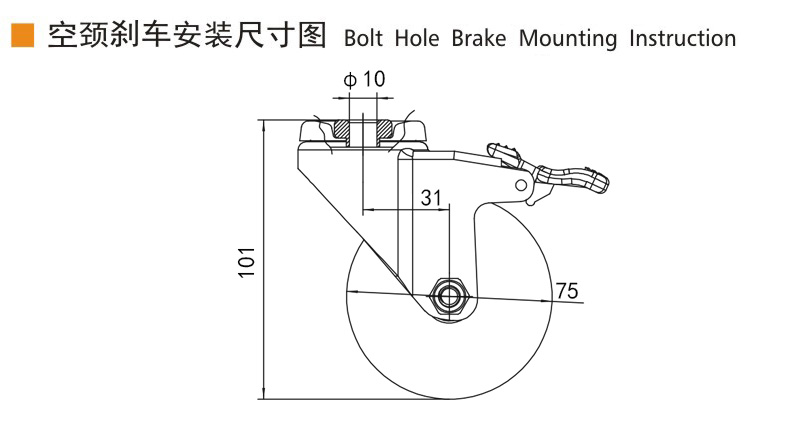

    • Mounting Type:Bolt_Hole_Brake
    • Tread Material:TPU
    • Dynamic Load:70kg
    • Mounting Height :101mm
    • Frame Material:Cold-Rolled Plate
    • Standard Bolt Hole:φ10mm
    • Brack Thickness:2mm
    • Surface Treatment:Zinc Coating
    • Bracket Width:33mm
    • Wheel width:25mm
    • Bearing:Sleeve
    • Tread Color: Red
    • Core Material:PP
    • Applicable Temperature:-20℃~80℃
    • Tread Hardness:95A
    Commodity Details
