    EDL Heavy 5'' 380kg Plate Swivel TPU Caster 73115-735-86
    • Product Category:73 Series(300-450kg)
    • Item NO.:70115-705-86
    • Wheel Diameter:5"(125mm)

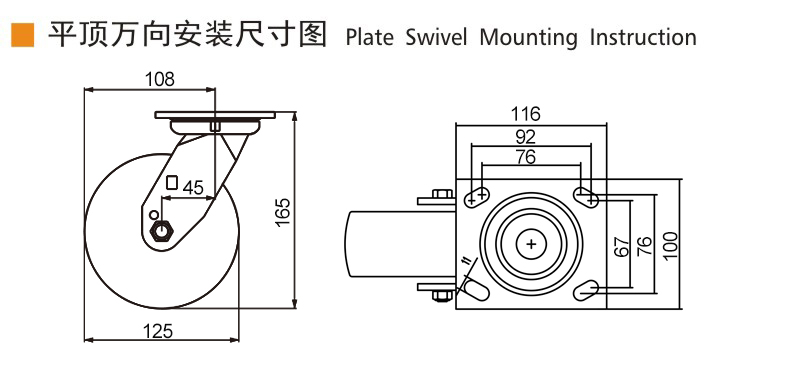

    • Mounting Type:Plate_Swivel
    • Tread Material:TPU
    • Dynamic Load:380kg
    • Mounting Height :165mm
    • Frame Material:Hot-Rolled Plate
    • Plate Thickness:6mm
    • Brack Thickness:5mm
    • Surface Treatment:Zinc Coating
    • Bracket Width:61mm
    • Wheel width:50mm

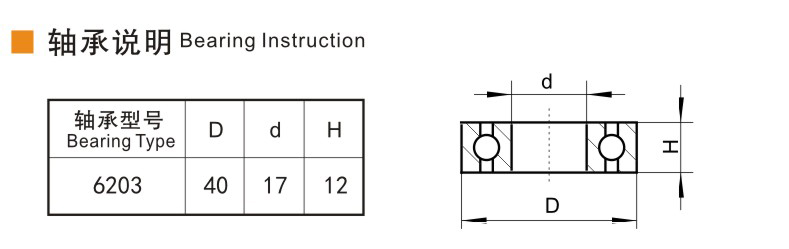

    • Bearing:Double Ball Bearing
    • Tread Color: Red
    • Core Material:PP
    • Applicable Temperature:-20℃~80℃
    • Tread Hardness:98A
