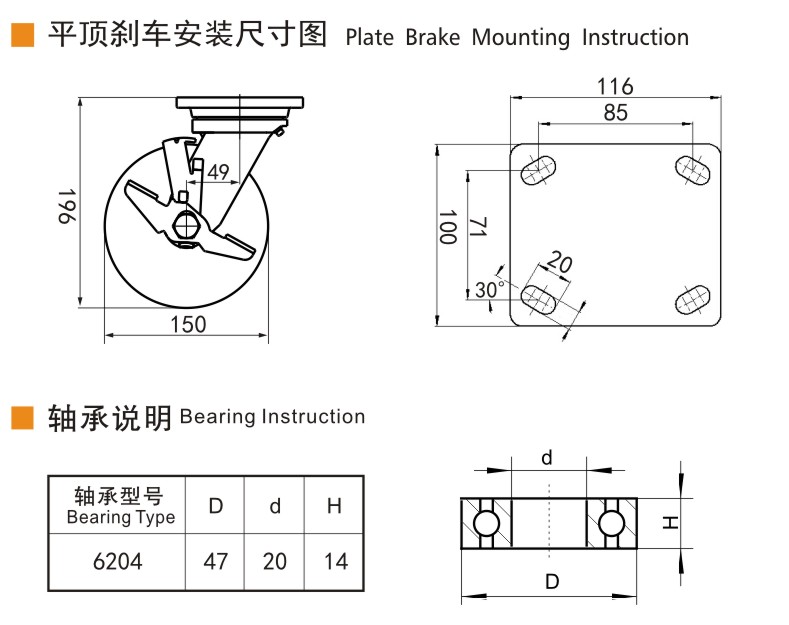

    EDL Heavy 6" 950kg Plate Side Wheel Brake Cast Iron Caster 78126C-786-96/C
    • Product Category:78 Series(700-1000kg)
    • Item NO.:78126C-786-96/C
    • Wheel Diameter:6"(150mm)
    • Mounting Type:Plate_Brake
    • Tread Material:Cast_Iron
    • Dynamic Load:950kg
    • Mounting Height :196mm
    • Frame Material:Hot-Rolled Plate
    • Plate Thickness:9.5mm
    • Brack Thickness:6mm
    • Surface Treatment:Zinc Coating
    • Bracket Width:61mm
    • Wheel width:50mm
    • Bearing:Double Ball Bearing
    • Tread Color: Grey
    • Core Material:/
    • Applicable Temperature:-30℃~120℃
    • Tread Hardness:/
    Commodity Details
