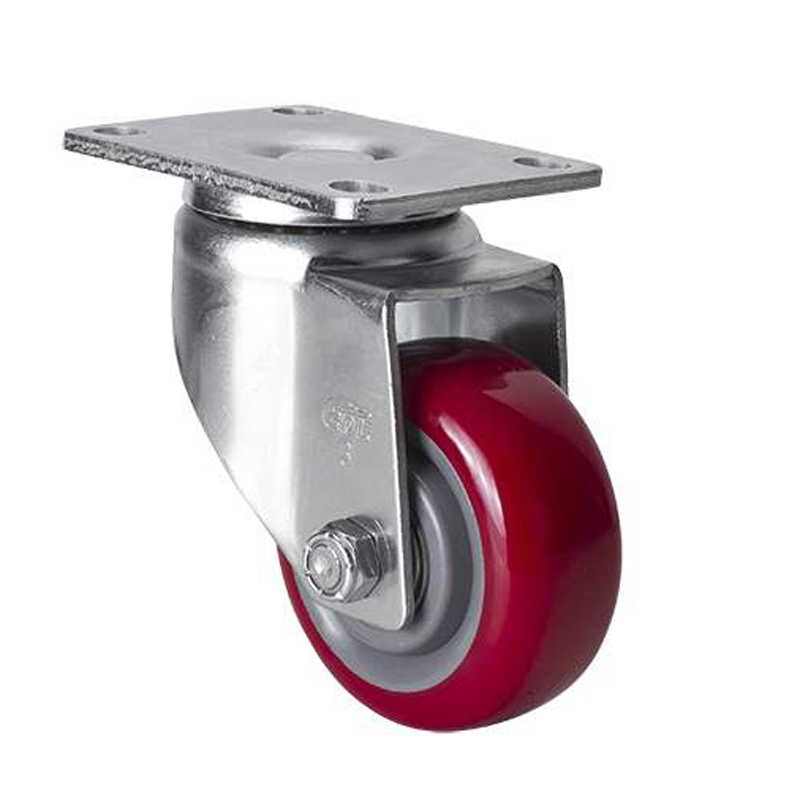

    EDL Medium 3" 150kg Plate Swivel TPU Caster 50113-503-86
    • Product Category:50 Series(120-150kg)
    • Item NO.:50113-503-86
    • Wheel Diameter:3"(75mm)

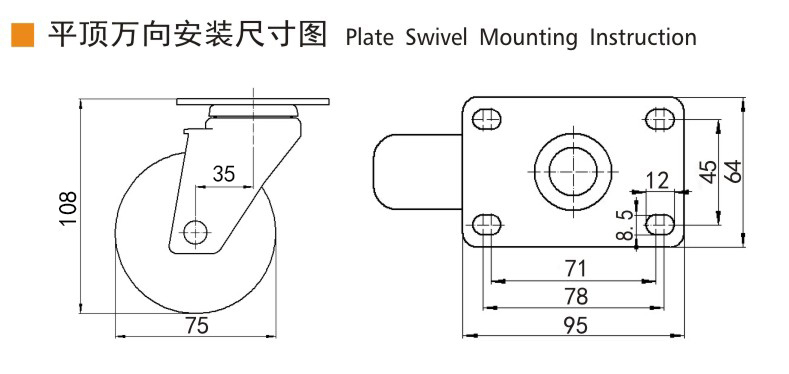

    • Mounting Type:Plate_Swivel
    • Tread Material:TPU
    • Dynamic Load:150kg
    • Mounting Height :108mm
    • Frame Material:Cold-Rolled Plate
    • Plate Thickness:4mm
    • Brack Thickness:2.5mm
    • Surface Treatment:Zinc Coating
    • Bracket Width:41mm
    • Wheel width:32mm

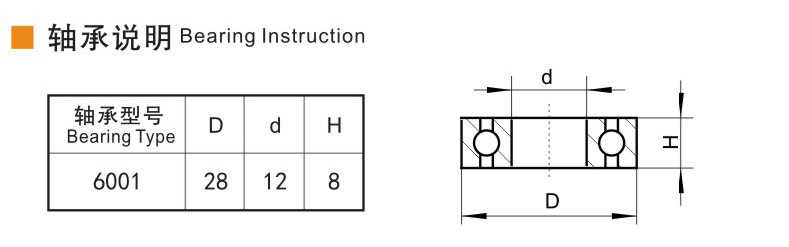

    • Bearing:Double Ball Bearing
    • Tread Color: Red
    • Core Material:PP
    • Applicable Temperature:-20℃~80℃
    • Tread Hardness:95A
    Commodity Details
