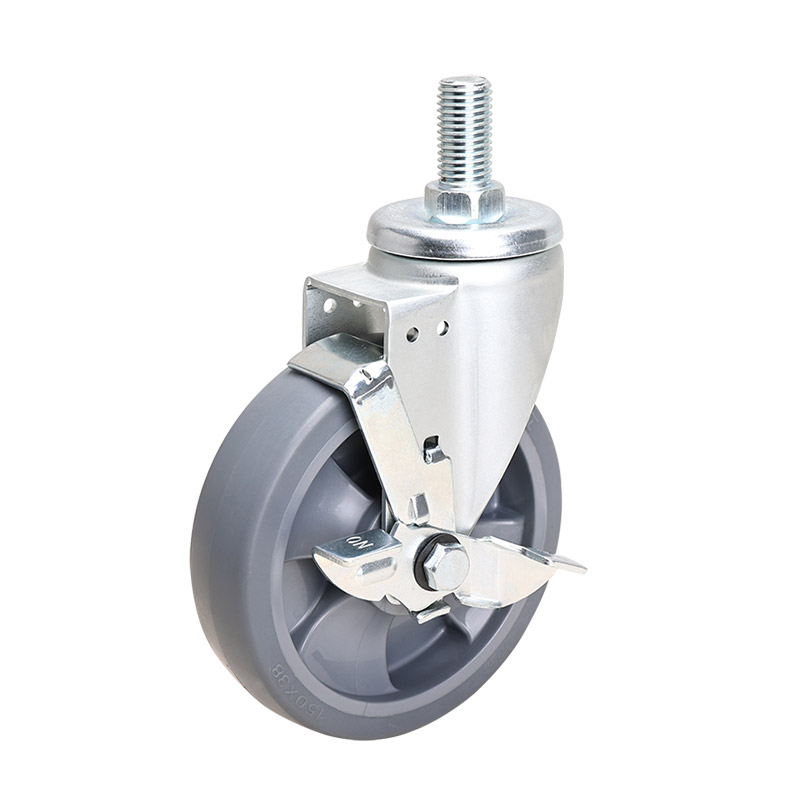

    EDL Medium 6" 220kg Threaded Side Wheel Brake TPE Caster 66146C-666-56/C
    • Product Category:66 Series(180kg-300kg)
    • Item NO.:66146C-666-56/C
    • Wheel Diameter:6"(150mm)
    • Mounting Type:Threaded_Brake
    • Tread Material:TPE
    • Dynamic Load:220kg
    • Mounting Height :201mm
    • Frame Material:Hot-Rolled Plate
    • Standard Threaded:M16X25mm
    • Brack Thickness:3mm
    • Surface Treatment:Zinc Coating
    • Bracket Width:46mm
    • Wheel width:38mm

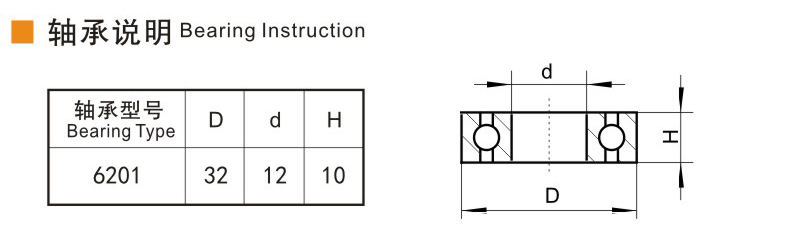

    • Bearing:Double Ball Bearing
    • Tread Color: Grey
    • Core Material:PP
    • Applicable Temperature:-30℃~70℃
    • Tread Hardness:80A
