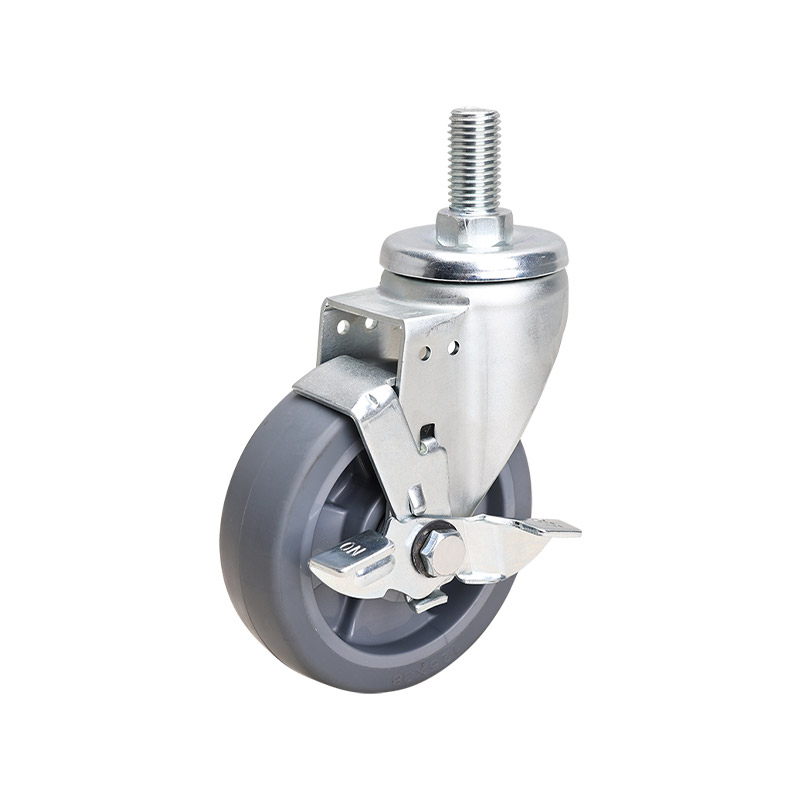

    EDL Medium 5" 200kg Threaded Side Wheel Brake TPE Caster 66145C-665-56/C
    • Product Category:66 Series(180kg-300kg)
    • Item NO.:66145C-665-56/C
    • Wheel Diameter:5"(125mm)
    • Mounting Type:Threaded_Brake
    • Tread Material:TPE
    • Dynamic Load:200kg
    • Mounting Height :176mm
    • Frame Material:Hot-Rolled Plate
    • Standard Threaded:M16X25mm
    • Brack Thickness:3mm
    • Surface Treatment:Zinc Coating
    • Bracket Width:46mm
    • Wheel width:38mm

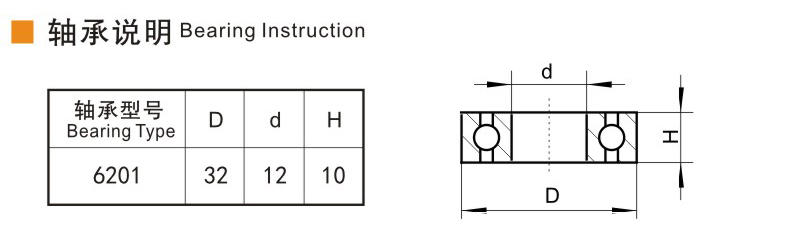

    • Bearing:Double Ball Bearing
    • Tread Color: Grey
    • Core Material:PP
    • Applicable Temperature:-30℃~70℃
    • Tread Hardness:80A
