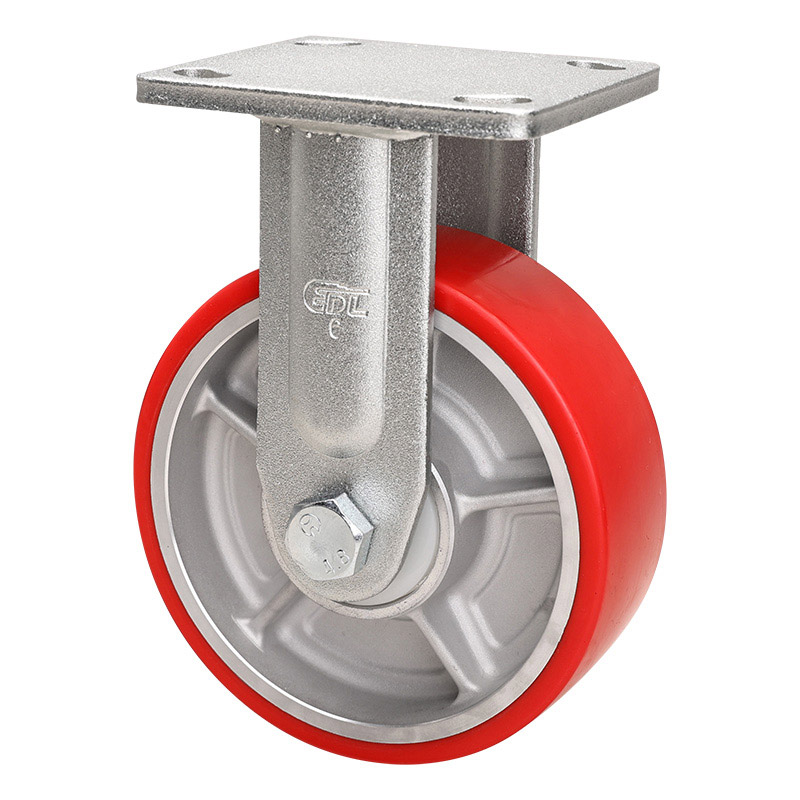

    EDL Heavy 6" 750kg Rigid TPU Caster 78106-786-86A
    • Product Category:78 Series(700-1000kg)
    • Item NO.:78106-786-86A
    • Wheel Diameter:6"(150mm)
    • Mounting Type:Rigid
    • Tread Material:TPU
    • Dynamic Load:750kg

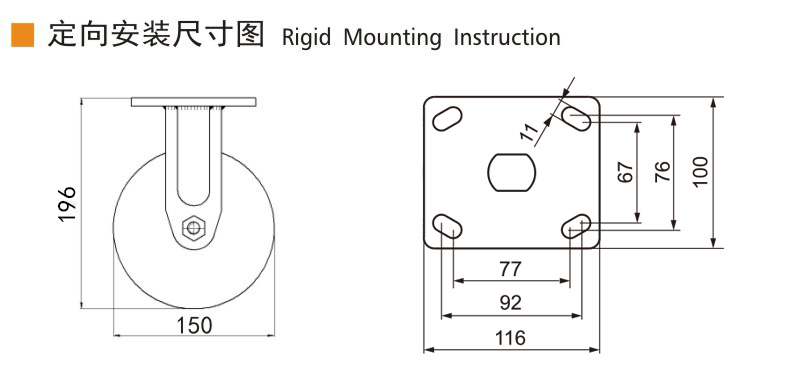

    • Mounting Height :196mm
    • Frame Material:Hot-Rolled Plate
    • Plate Thickness:8mm
    • Brack Thickness:6mm
    • Surface Treatment:Zinc Coating
    • Bracket Width:61mm
    • Wheel width:50mm

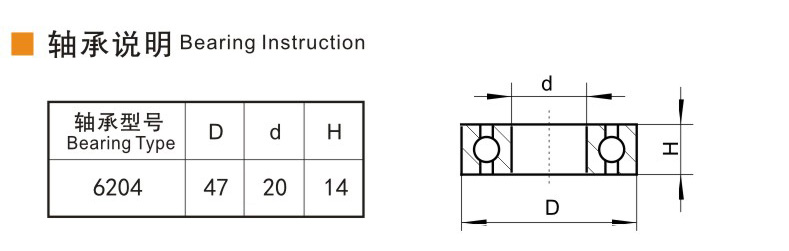

    • Bearing:Double Ball Bearing
    • Tread Color: Red
    • Core Material:Aluminum
    • Applicable Temperature:-20℃~80℃
    • Tread Hardness:95A
    Commodity Details
