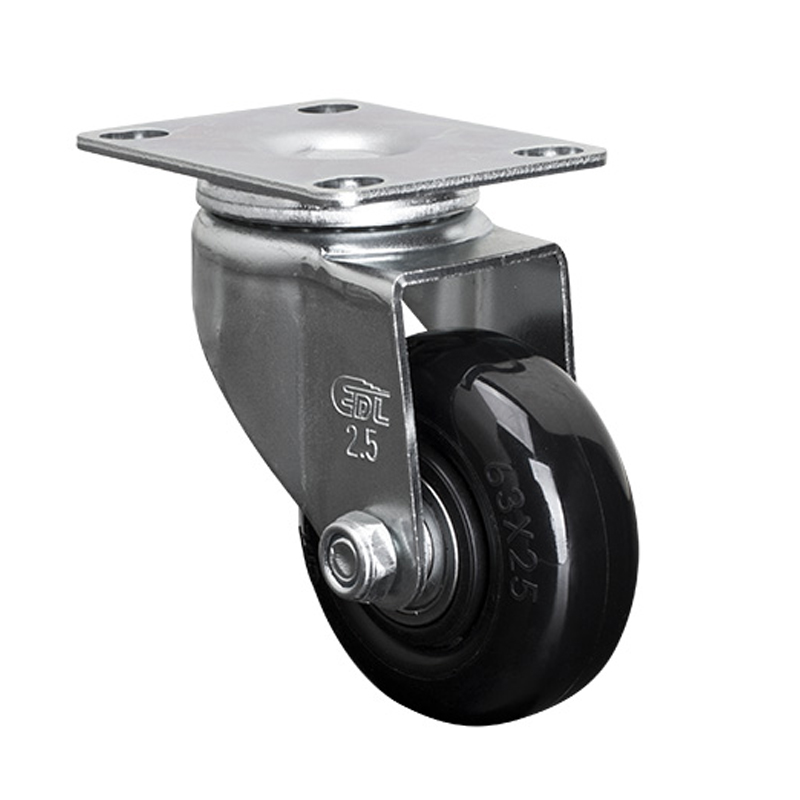

    EDL Light 2.5'' 70kg Plate Swivel PU Caster 361125-3625-66
    • Product Category:36 Series(60-80kg)
    • Item NO.:361125-3625-66
    • Wheel Diameter:2.5"(62-63mm)

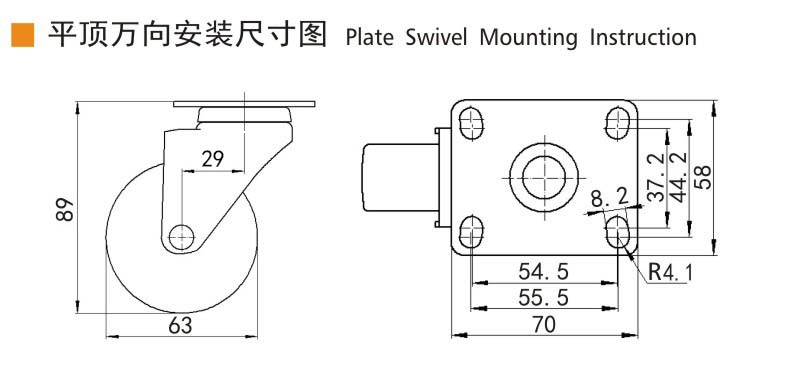

    • Mounting Type:Plate_Swivel
    • Tread Material:PU
    • Dynamic Load:70kg
    • Mounting Height :89mm
    • Frame Material:Cold-Rolled Plate
    • Plate Thickness:2.5mm
    • Brack Thickness:2mm
    • Surface Treatment:Zinc Coating
    • Bracket Width:33mm
    • Wheel width:25mm

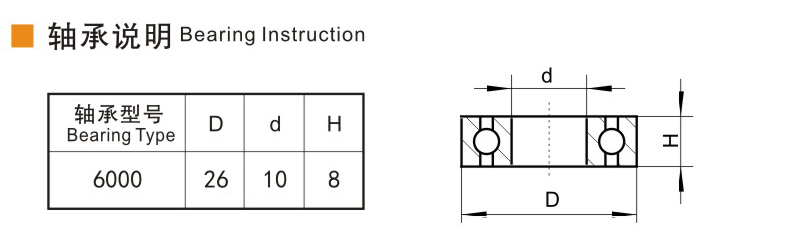

    • Bearing:Double Ball Bearing
    • Tread Color: Black
    • Core Material:PP
    • Applicable Temperature:-20℃~80℃
    • Tread Hardness:95A
