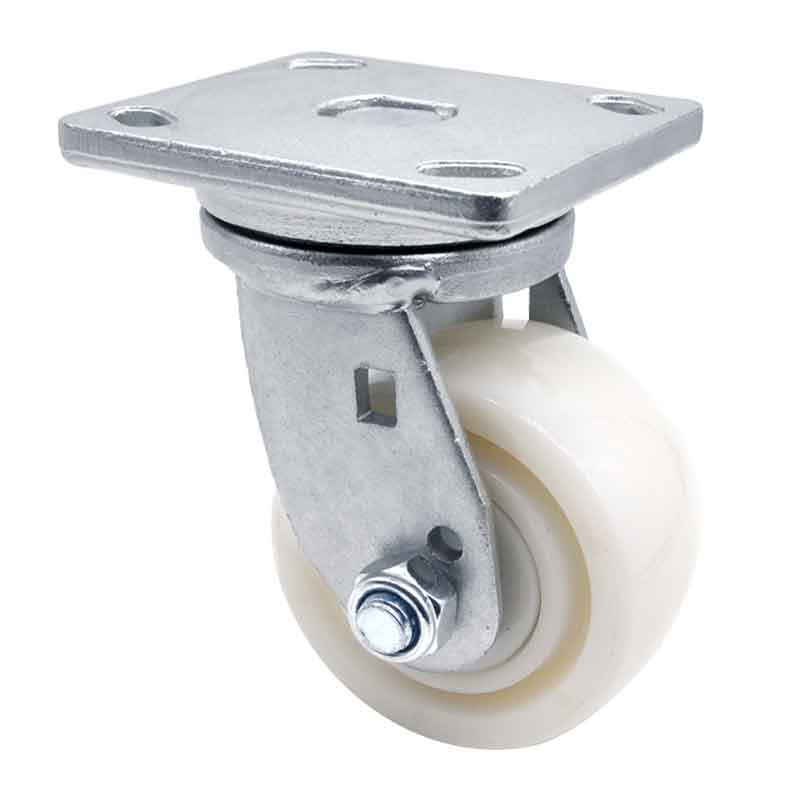

    EDL Heavy 4" 750kg Plate Swivel TPA Caster 78114-784-26
    • Product Category:78 Series(700-1000kg)
    • Item NO.:78114-784-26
    • Wheel Diameter:4"(100mm)
    • Mounting Type:Plate_Swivel
    • Tread Material:TPA
    • Dynamic Load:750kg
    • Mounting Height :151mm
    • Frame Material:Hot-Rolled Plate
    • Plate Thickness:9.5mm
    • Brack Thickness:6mm
    • Surface Treatment:Zinc Coating
    • Bracket Width:61mm
    • Wheel width:50mm
    • Bearing:Double Ball Bearing
    • Tread Color: White
    • Core Material:/
    • Applicable Temperature:-20℃~120℃
    • Tread Hardness:67D
